How to Repair an LED Bulb at Home: 5 Easy Steps to Fix a Faulty LED Light
LED bulbs have become one of the most popular lighting technologies in the world due to their energy efficiency, durability, and long lifespan. Compared to traditional filament bulbs and fluorescent lights, LED bulbs consume significantly less electricity while producing brighter and more reliable light.
In the past, most households used incandescent filament bulbs, which consumed large amounts of electrical energy and had a relatively short lifespan. Fluorescent lamps later became a popular alternative because they were slightly more efficient. However, both technologies have gradually been replaced by LED (Light Emitting Diode) bulbs, which can save up to 80–90% of energy compared to traditional lighting systems.
Despite their efficiency, LED bulbs can sometimes stop working due to damaged LEDs, faulty circuits, or loose internal connections. The good news is that many LED bulbs can actually be repaired instead of being thrown away, which helps reduce costs and electronic waste.
Repairing an LED bulb is not as complicated as many people think. With a few basic tools and careful steps, it is possible to fix many common LED bulb problems at home.
Before learning how to repair an LED bulb, it is important to understand the main parts of an LED bulb, since most faults occur in these components.

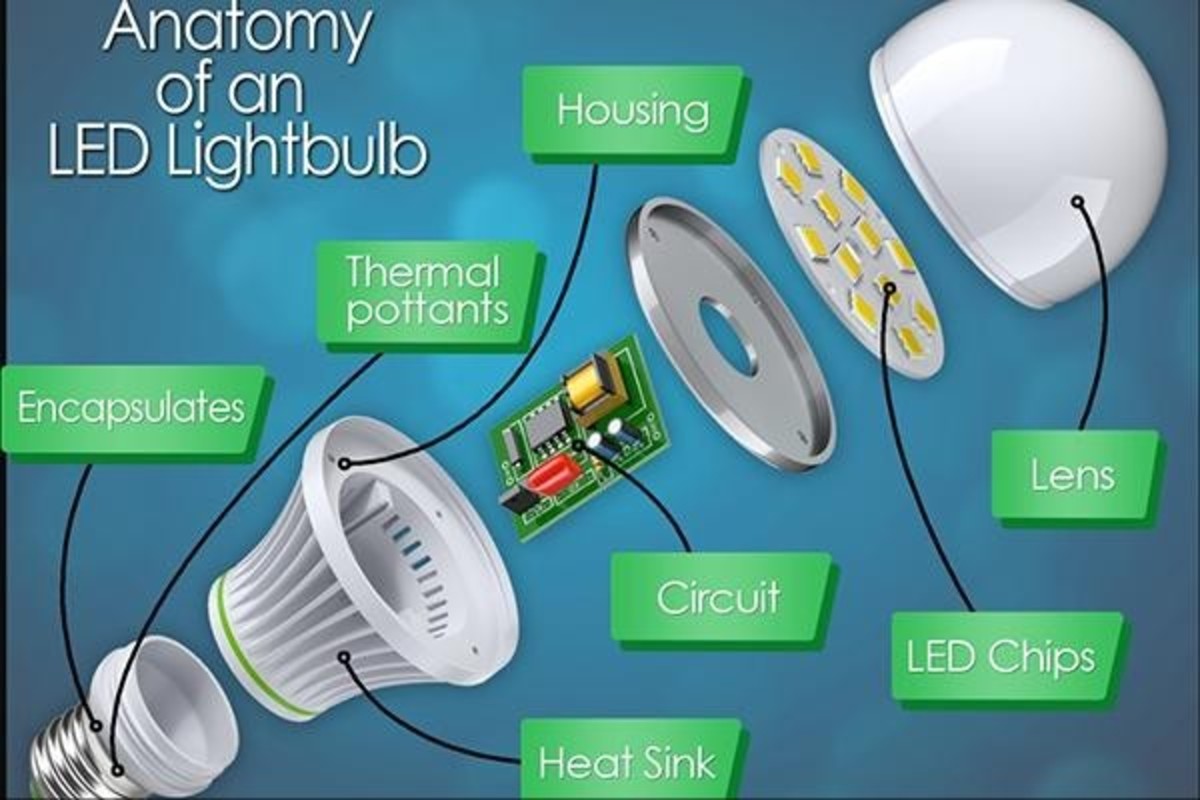

An LED bulb mainly consists of the following parts:
- LED chips – These contain the light-emitting diodes that produce light when electricity passes through them.
- Driver circuit – This regulates the electrical current flowing to the LEDs.
- Encapsulated housing – This protects internal components and connects the bulb to the electrical base.
Most LED bulb failures occur in the LED chip or driver circuit, while wiring issues inside the encapsulated housing occur less frequently.
Below are five easy steps you can follow to repair a non-functional LED bulb at home.
Traditional Steps to Repair an LED Bulb
Step 1: Gather the Necessary Tools and Materials
Before repairing an LED bulb, you must first gather the tools required for the repair process.
Some of the basic tools you will need include:
- Soldering iron
- Lead alloy solder wire (melting point around 188°C or 370°F)
- Screwdriver or screw-opening tool
- Small connecting wires
- Protective gloves (optional but recommended)
The soldering iron is used to melt the solder wire and reconnect broken electrical paths on the LED chip.
Having the correct tools ensures that the repair process becomes easier, safer, and more effective.
Step 2: Carefully Open the LED Bulb
The next step is to open the LED bulb carefully by removing the outer plastic or glass lens.
Most LED bulbs have a diffuser cover that can be removed using a screwdriver or by gently prying it open.
After opening the bulb, you will usually see the LED chip plate, which contains multiple small LED lights connected together.
At this stage, you may notice several possible conditions:
- Black spots on one or more LEDs – This indicates that the LED has burned out due to overheating.
- Clean LED chips with no visible damage – Even if the LEDs look normal, some of them may still be faulty.
- Burn marks on the circuit board – This suggests damage to the driver circuit.
Carefully inspecting these components will help you determine where the fault is located.
Step 3: Remove the Faulty LED and Reconnect the Circuit
If you notice a black spot on one of the LEDs, it usually means that the LED has been damaged.
To fix this problem:
- Heat the soldering iron.
- Use it to remove the damaged LED or its top connection.
- Apply lead alloy solder wire to reconnect the circuit.
The purpose of soldering is to restore the electrical pathway so that electricity can continue flowing through the remaining LEDs.
If no black spots are visible, you can test each LED by lightly touching its terminals with the heated soldering iron. A working LED may produce a small flash of light, indicating that it is still functional.
Repeat this testing process for all LEDs on the board. When you identify faulty LEDs, remove them and reconnect the circuit using solder.
After completing this step, test the bulb to see if it lights up. If it still does not work, proceed to the next step.
Step 4: Replace the LED Driver Circuit
If all the LED chips appear functional but the bulb still does not produce light, the problem may be in the LED driver circuit.
The driver circuit regulates electrical current and ensures that the LEDs receive the correct voltage.
To check the circuit:
- Create a temporary connection to test whether current is reaching the LED plate.
- Connect the positive and negative wires directly to the LED plate.
- If the LEDs light up, the problem is likely with the driver circuit.
In this case, the best solution is to remove the damaged circuit and replace it with a working one from another LED bulb.
Once the replacement circuit is installed, reconnect the bulb and test it again.
Step 5: Check Internal Wires and Encapsulated Connections
If the bulb still does not work after replacing the circuit, the final step is to check the internal wiring inside the bulb housing.
Sometimes the small wires connecting the base, circuit, and LED plate may become:
- Loose
- Broken
- Poorly connected
Reconnect any loose wires using solder.
In some cases, you may find multiple consecutive LEDs damaged, making it difficult to bridge them with solder alone. When this happens, you can use a small connecting wire to bridge the gap and complete the circuit.
After reconnecting the wires, close the bulb housing and test it again.
Conclusion
LED bulbs are designed to be energy-efficient, durable, and long-lasting, but like any electronic device, they can occasionally fail.
Fortunately, many LED bulb problems can be repaired at home using simple tools and basic techniques.
The most common causes of LED bulb failure include:
- Burned-out LED chips
- Faulty driver circuits
- Loose or damaged internal wiring
By following the five simple steps explained in this guide, you can repair many non-functional LED bulbs and extend their lifespan.
Repairing LED bulbs not only saves money on replacements, but also helps reduce electronic waste, making it a more environmentally friendly solution.
With a little patience and practice, anyone can learn how to repair LED bulbs and reuse them instead of throwing them away.
